Object Detection Pipeline using ResNet18

GitHub Repo: object-detection

This project demonstrates a simple visual inspection pipeline using a pretrained convolutional neural network (CNN). Images are loaded and passed into the CNN model, which outputs a predicted class and confidence score. The class and score are then overlaid on each image using OpenCV, and saved for further inspection. All of the results are logged to a CSV file.

Prerequisites

• github.com/blakeruprecht/object-detection
• Python
• Virtual environment (recommended):
  • python3 -m venv venv
  • source venv/bin/activate
  • pip install torch torchvision opencv-python matplotlib

System Overview

• compvis/
  • images/
    • example1.png
    • example2.jpg
  • outputs/
    • example1.png
    • example2.jpg
    • inspection_log.csv
  • model.py
  • look.py

Workflow

Inputs

• Add .png, .jpg, or .jpeg images to the images/ folder.
• Change the model used in model.py to anything you want. Just remember that the ResNet18 labels are used in both model.py and look.py to label the predicted classes.
• Swap out the model in model.py. By default, model.py and look.py use ResNet18 with ImageNet labels.

Running

• python look.py

Outputs

• Images labeled with class and score saved to outputs/
• Results logged in outputs/inspection_log.csv
• Note: outputs/ doesn’t get cleared between runs.

Results

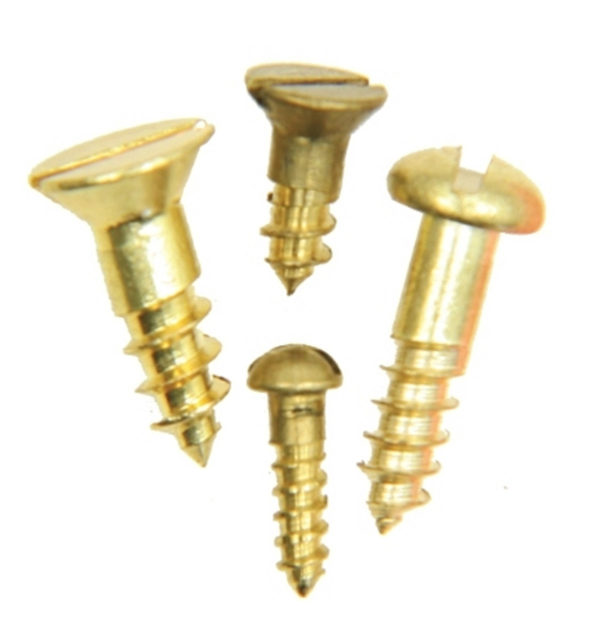

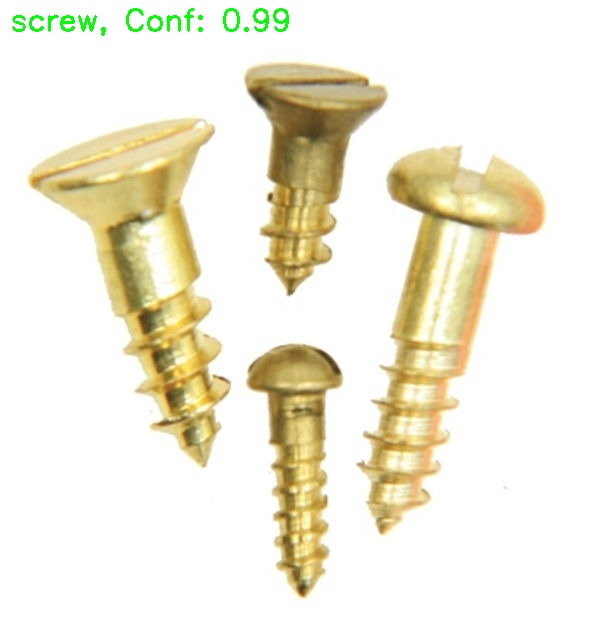

Example: screws.jpg, Input (left) → Output (right)

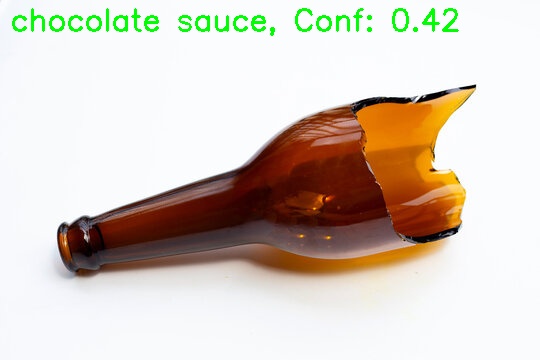

Example: broken-bottle.jpg, Input (left) → Output (right)

Example of the output log: inspection_log.csv

filename,predicted_class,confidence
broken-bottle.jpg,chocolate sauce,0.4199
pill-blister-packs-boken.jpg,pencil sharpener,0.2043
broken-cable.jpg,whistle,0.1151
circuit-components.jpg,lighter,0.2302
bolt-failure.png,screw,0.9955
pills-blister-pack.jpg,remote control,0.5651
random-weird-nuts.jpg,dumbbell,0.8688
plug-on-fire.jpg,spotlight,0.2793
screws.jpg,screw,0.9930
bottle-conveyor.jpg,cleaver,0.4906

Code Walkthrough

model.py

• Loads ResNet18, a CNN pretrained on ImageNet, from torchvision.models
• Applies the models corresponding image transform

look.py

• Loads the model and transform defined in model.py
• Iterates through all files in images/
• For each .png/.jpg/.jpeg in images/:
  • Opens the image and transforms it
  • Runs the image through the PyTorch inference model
  • Predicts the class and confidence score of the class
  • Overlays the class and score over a copy of the original image using OpenCV
  • Saves the annotated image to outputs/
  • Appends the result to outputs/inspection_log.csv

Next Ideas

• Confidence thresholding (e.g. 0.5 to prevent bad detections)
• Replacing ResNet18 with a different model.
• Real-time video input using OpenCV and a video stream.
